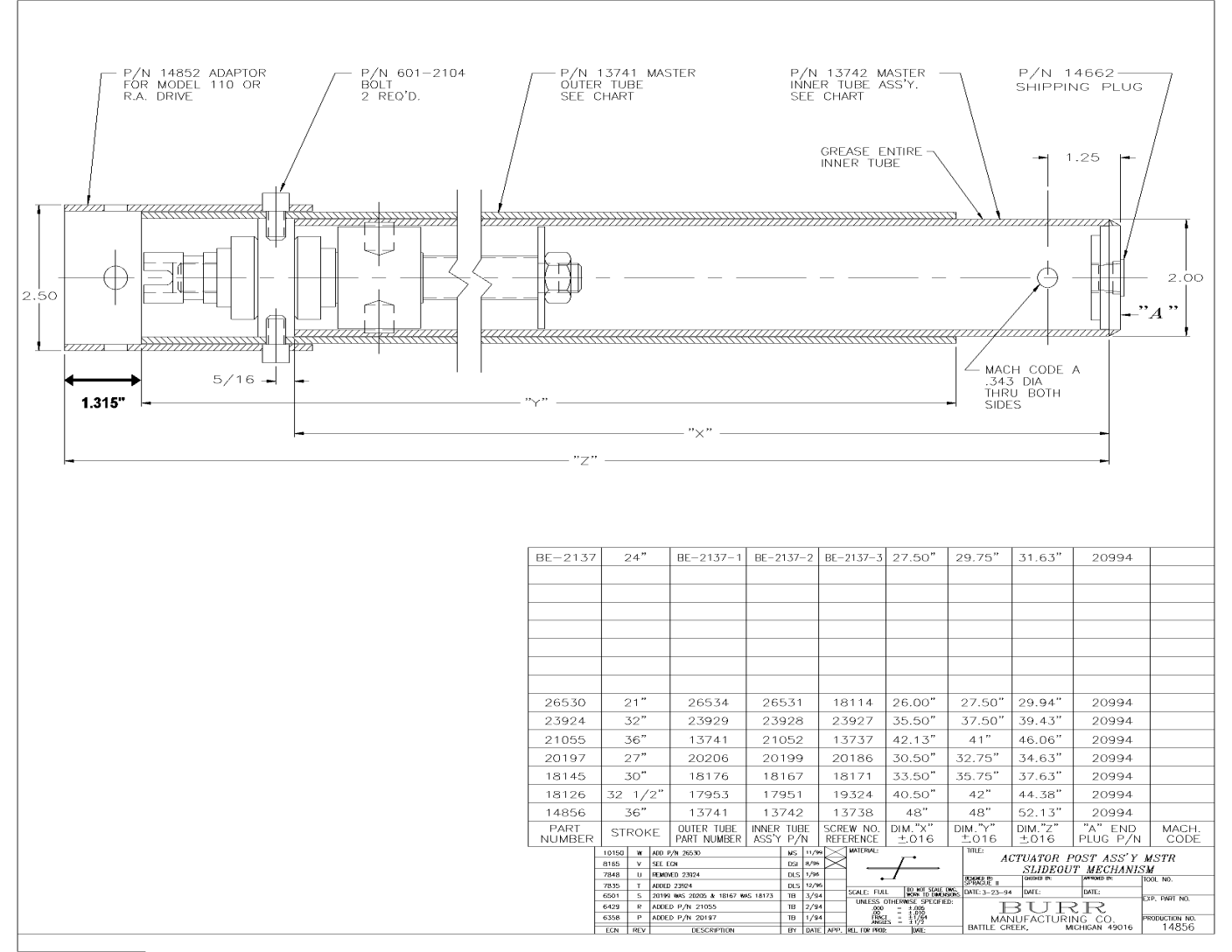

BARKER RV Product Line      Acme Slideout Base Assembly
Click on the image for a larger view
Or on the file name to download the PDF file
Standard Tubes

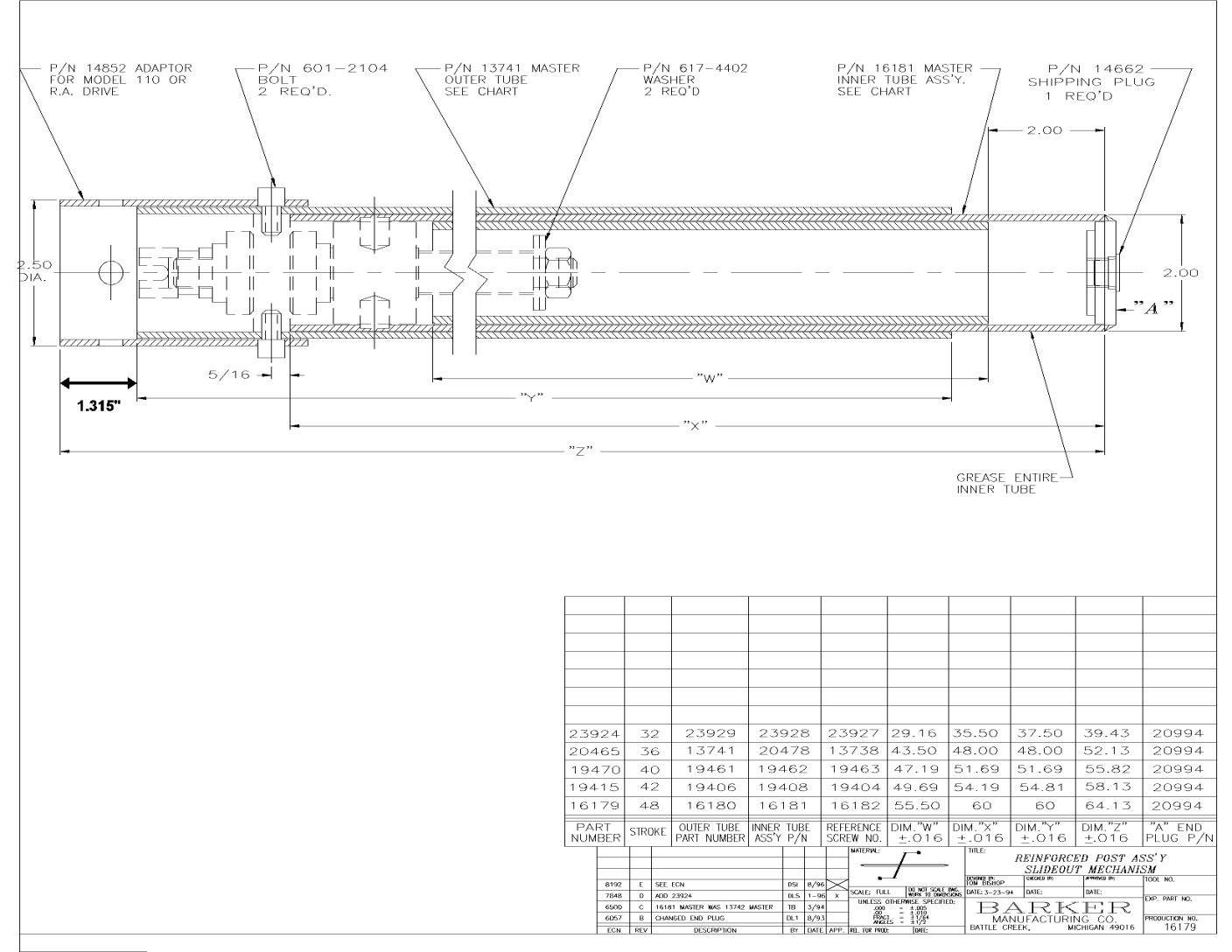

Heavy Duty Tubes

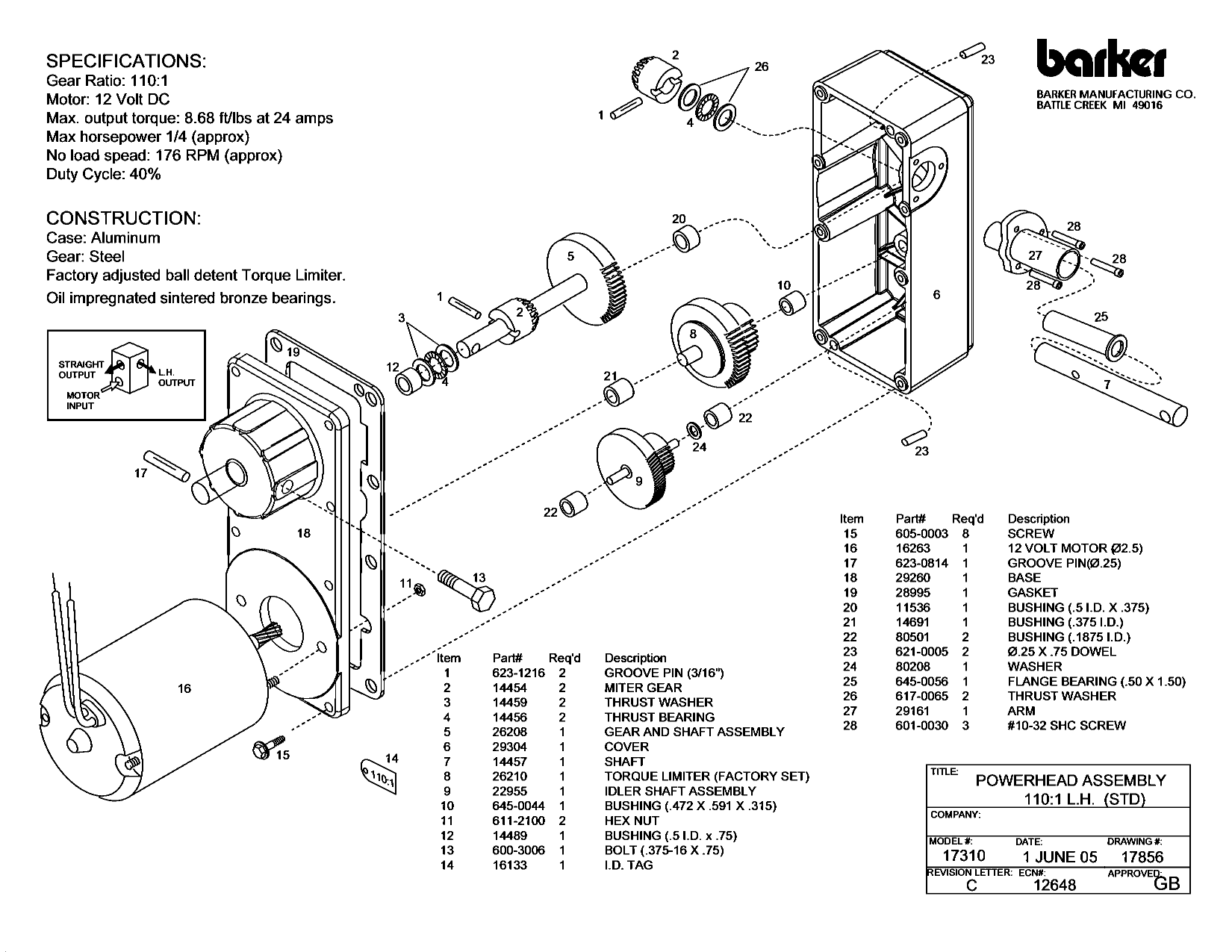

Single Drives

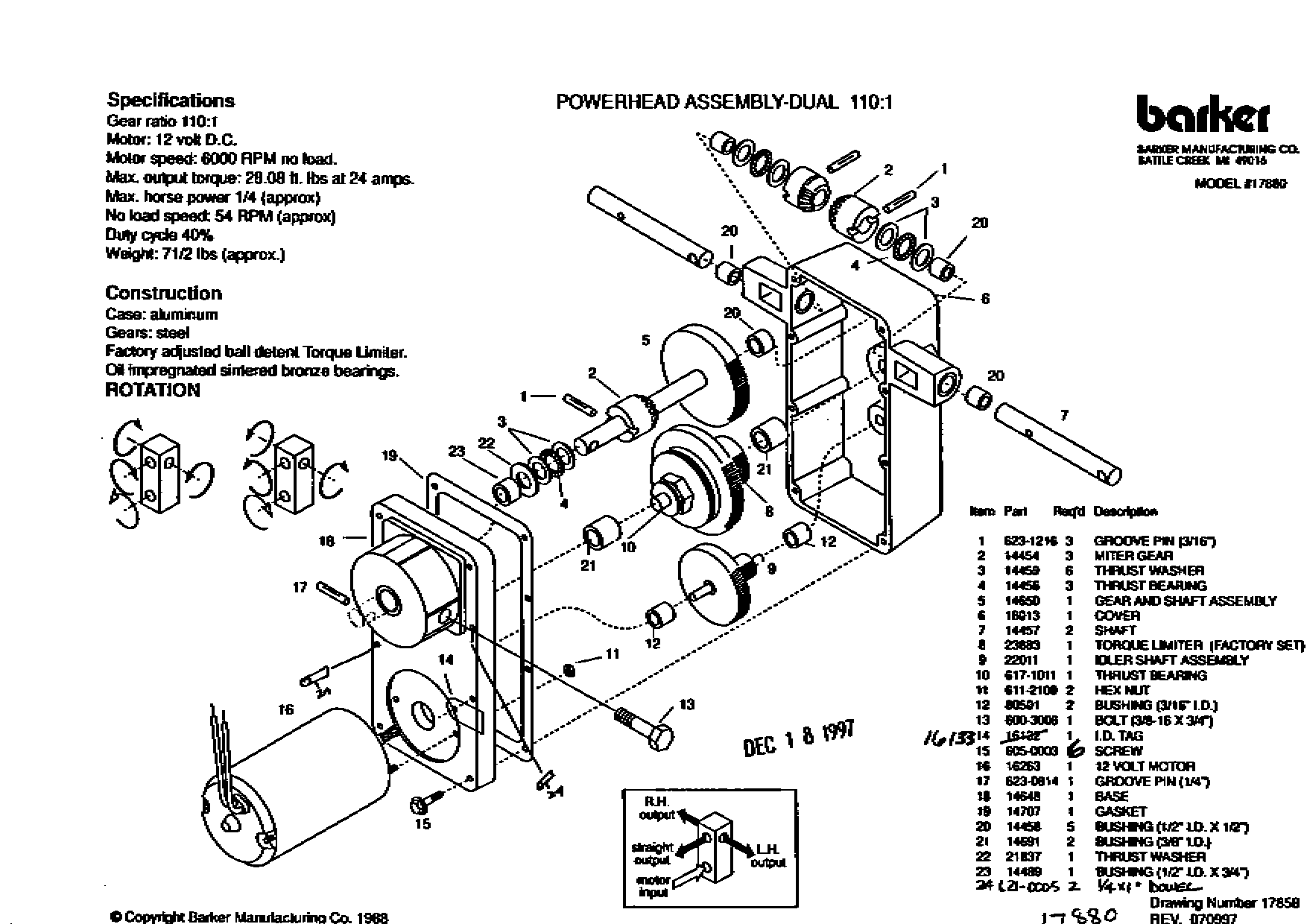

Dual Drives
